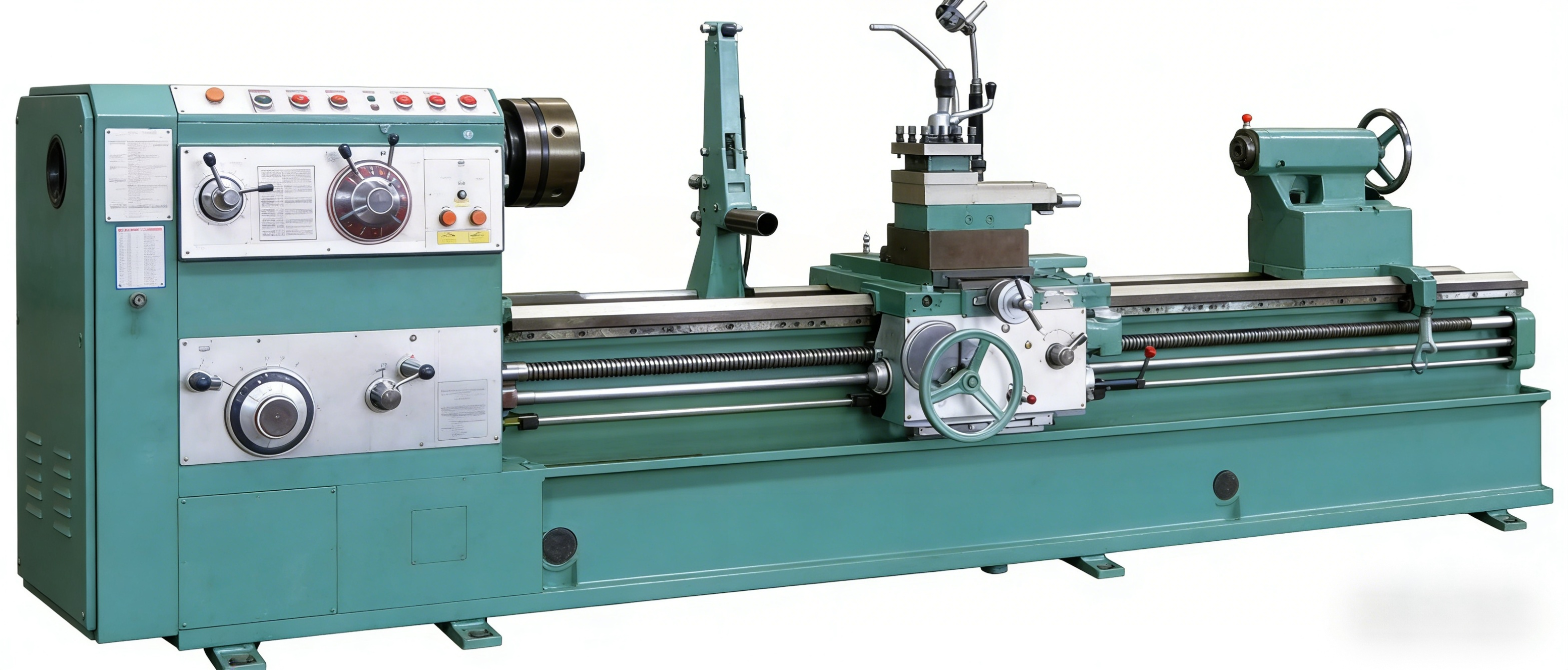

The heavy duty gap bed lathe 110F is a robust manual engine lathe designed for high-performance turning of large and long workpieces. With a swing over bed of 1100mm and maximum machining diameter of 790mm, this heavy duty gap bed lathe offers excellent capacity for medium to large shaft, roller, and cylinder machining.
Built with superior rigidity, the heavy duty gap bed lathe features a wide 550mm bed with guideways hardened to over HRC52 and precision ground. It is equipped with a large 105mm spindle bore, 18-step spindle speeds from 6 to 800 rpm, and an 11kW main motor. Key components are finished on Spanish CNC machining centers for higher accuracy and durability.
This heavy duty gap bed lathe also provides strong cutting capacity (Px up to 7840N), low-noise CNC ground gears, and extensive threading capabilities. Available with bed lengths of 3m, 4m, or 5m, the 110F series is the ideal choice for heavy industry applications in mining, energy, shipbuilding, and machinery manufacturing.
Key technical features include:
- Wide 550mm bed with guideways hardened to over HRC52 and precision ground by CNC grinding machine
- 105mm spindle bore with 1:20 taper
- 18-step spindle speeds from 6 to 800 rpm powered by 11kW main motor
- High-precision components finished on Spanish CNC machining centers
- Low-noise CNC gear grinding transmission system
- Strong cutting capacity with Px up to 7840N
- Extensive threading capabilities including metric, inch, module, and diametral pitches
- Optional bed lengths: 3m, 4m, or 5m
Engineered for durability and accuracy, the 110F series is the perfect choice for workshops in mining, energy, shipbuilding, and heavy machinery manufacturing.
5. FAQ
Q1: What is the maximum machining length of the 110F lathe? A: The 110F heavy duty lathe supports machining lengths of 3 meters, 4 meters, or 5 meters depending on the bed size selected.
Q2: What is the spindle bore size and why does it matter? A: The spindle bore diameter is 105mm, allowing the machine to handle larger diameter bar stock and long through-hole workpieces.
Q3: Is the 110F suitable for heavy cutting? A: Yes. It features a wide 550mm hardened bed, strong 11kW motor, and high cutting force (Px 7840N), making it well-suited for heavy duty turning.
Q4: What is the difference between 95F, 110F, and 125F? A: The main difference is the swing over bed: 950mm (95F), 1100mm (110F), and 1250mm (125F). The 110F offers the best balance between capacity and price for most users.
Q5: Does this lathe come with a gap bed? A: Yes, all models in the 95F/110F/125F series are gap bed lathes, allowing larger diameter workpieces to be machined when the gap section is removed.
