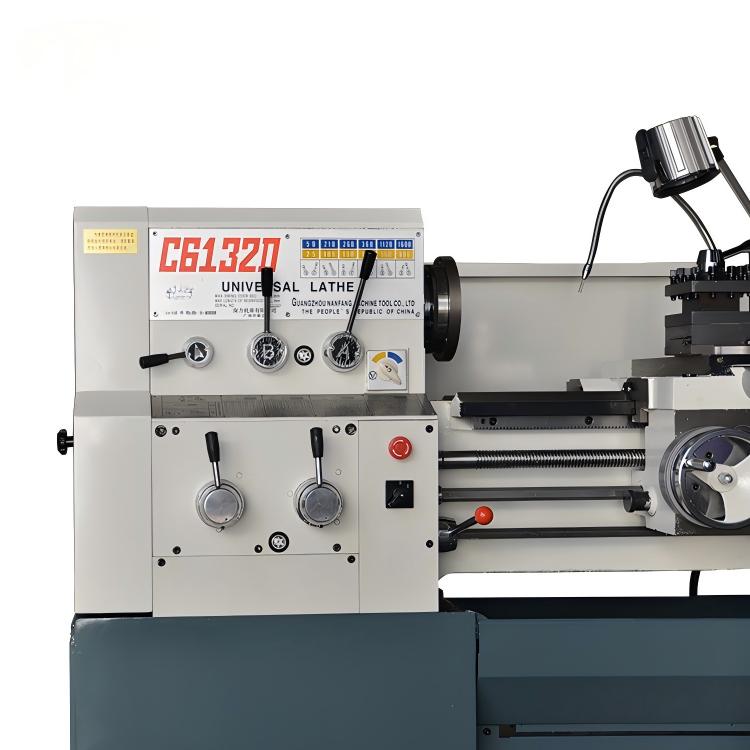

C6232D / C6132D Interval Bed Lathe – 350mm Slewing Diameter Manual Lathe

The C6232D/C6132D series is a versatile manual backplane lathe designed for precision turning, threading, and general machining. Featuring a bed turning diameter of up to 350 mm and an inter-bed turning diameter of up to 520 mm , these robust lathes offer exceptional rigidity and flexibility for workshops and manufacturing plants. The C6232D backplane lathe is available in three center distances (750 mm, 1000 mm, and 1500 mm), making it ideal for machining shafts, flanges, discs, and maintenance work.

Main features and advantages

The C6232D / C6132D manual backlash lathes stand out for their robust structure and user-friendly design:

• Large clearance bed design : with a maximum swing diameter of 520 mm and an effective length of 200 mm, it is ideal for turning short workpieces with large diameters, such as flanges and pulleys, without compromising bed rigidity.
• High-precision hardened guideways : The bed guideways are hardened to HRC52+ and precision ground on a CNC grinding machine to achieve excellent precision and a long service life.
• Powerful yet quiet spindle : 46mm spindle bore (can machine bar stock up to 45mm), MT6 taper, 12 speed settings, range 25-1600rpm. Key components are machined using Spanish CNC machining centers and low-noise CNC ground gears.
• Versatile threading capabilities : Supports a wide range of metric, imperial, module, and diametral pitch threads—ideal for maintenance, tool room, and production.
• Reliable drive system : 3/4.5 kW dual-speed main motor with heavy-duty V-belt for stable power transmission.
• Flexible tailstock : MT4 taper, 130mm spindle travel, ±10mm offset, facilitating taper turning.

Benefits to your company :

• Improve production efficiency through multi-functional gap bed design
• The robust and durable, highly rigid structure reduces downtime.
• Precision-machined parts can reduce maintenance costs
• This product offers excellent value for workshops seeking reliable manual clearance lathes .

  Technical Specifications

  Specification	C6132D / C6232D
  Swing on the bed	350 mm
  Swing frame	190 mm
  Gap oscillation (maximum value)	520 mm
  Effective gap length	200 mm
  Maximum workpiece length	750 / 1000 / 1500 mm
  bed width	320 mm
  spindle bore	46 mm (bar capacity 45 mm)
  spindle nose	C6
  spindle taper	MT6
  spindle speed	25 – 1600 RPM (12 gears)
  X-axis travel (lateral slide)	220 mm
  Z-axis travel (tool post)	630 / 880 / 1380 mm
  Tailstock sleeve taper	MT4
  Tailstock axle travel	130 mm
  Tailstock offset	±10 mm
  Thread cutting (metric)	0.45 – 20 mm (30 types)
  Thread cutting (inches)	80 – 1-3/4 tpi (35 types)
  Main motor power	3 / 4.5 kW (dual speed)
  Net weight (approx.)	1350 / 1450 / 1550 kg

  C6232D lathe (based on bed length) – Select the appropriate model

  The C6232D / 750 (750mm center distance) is suitable for small workshops and compact production lines.

  • Maximum workpiece length: 750 mm
  • Z-axis travel: 630 mm
  • Dimensions: 1950 × 950 × 1200 mm
  • Net weight: 1350 kg. Best suited for : short to medium length shafts, training centers, and general maintenance work.

  The C6232D / 1000 (1000mm center distance) is the most popular balanced multi-functional machining option.

  • Maximum workpiece length: 1000 mm
  • Z-axis travel: 880 mm
  • Dimensions: 2200 × 950 × 1200 mm
  • Net weight: 1450 kg. Best suited for : medium-length parts, repair shops, and small-batch production.

  The C6232D / 1500 (1500mm center distance) is designed for longer workpieces while maintaining the advantages of a clearance bed.

  • Maximum workpiece length: 1500 mm
  • Z-axis travel: 1380 mm
  • Dimensions: 2700 × 950 × 1200 mm
  • Net weight: 1550 kg. Best suited for : long shafts, oil and gas components, and heavy machining workshops.

  app

  The C6232D type intermittent lathe is widely used in:

  • General machining workshop
  • Repair Department
  • Tool Room and Technical Training Center
  • Small to medium batch production of shafts, bushings, flanges, and threaded parts.
  • Prototyping and Custom Manufacturing

  Frequently Asked Questions (FAQ)

  Question 1: What is the difference between C6132D and C6232D? Answer: C6232D is an intermittent print bed with a larger intermittent swing range (520 mm), while C6132D is typically a vertical print bed. Their core specifications are the same.

  Q2: What is the spindle bore diameter? A: The spindle bore diameter is 46 mm, which can process bars with a diameter of up to 45 mm.

  Q3: Can this manual lathe machine machine metric and imperial threads? A: Yes. It supports metric threads (30 types), imperial threads (35 types), module threads (25 types), and diaphragm pitch threads (30 types).

  Q4: Can the gap section of the worktable be disassembled? A: Yes, the gap section can be disassembled to restore the full length of the worktable, thus allowing for the processing of longer workpieces.

  Q5: What kind of power supply is required? A: The standard configuration is 380V/50Hz (custom voltage can be provided upon request).
